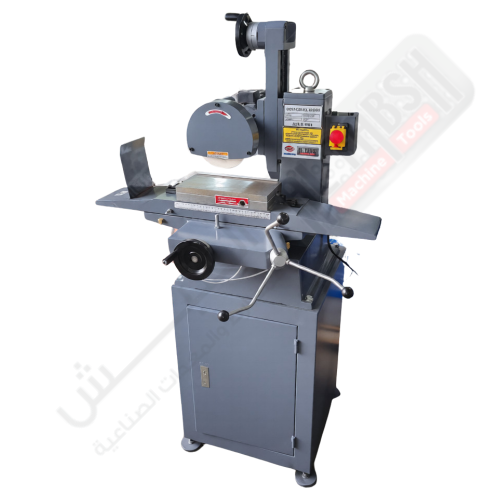

SP2501 SURFACE GRINDER WITH STAND AND PERMANENT MAGNETIC CHUCK, TABLE SIZE 152 X 304MM
SUMORE / SP2501
The SP2501 Surface Grinder is a compact precision grinding machine designed for accurate surface finishing. It features a permanent magnetic table, precise feed control, and a reliable grinding system suitable for small machining and workshop applications.
The SP2501 Surface Grinder is a compact precision grinding machine designed for accurate surface finishing. It features a permanent magnetic table, precise feed control, and a reliable grinding system suitable for small machining and workshop applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SP2501 |
| Longitudinal Stroke | 340 mm |
| Cross Stroke | 170 mm |
| Vertical Stroke | 210 mm |
| Table Size | 152 × 304 mm |
| T-Slot Width | 1–12 mm |
| Feed Accuracy Cross: | 0.02 mm / Vertical: 0.025 mm |
| Grinding Wheel Size | 180 × 32 × 13 mm |
| Roughness | 1.6 μm |
| Motor Power | 0.55 kW |
| Machine Weight | 210 / 258 kg |
| Overall Size | 930 × 780 × 730 mm |
| Packing Size | 1100 × 760 × 860 mm |
| Stand Packing Size | 750 × 580 × 630 mm |
