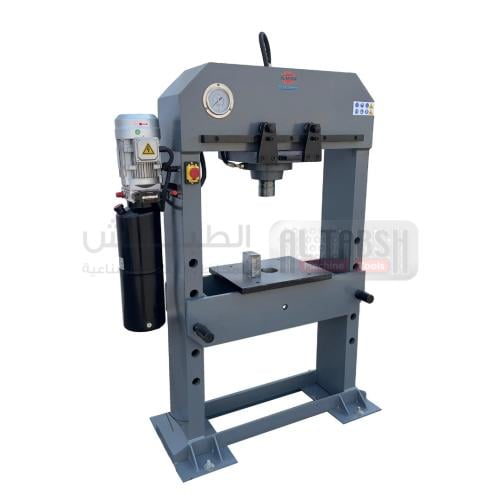

SP-50M ELECTRICAL ONLY H-TYPE HYDRAULIC PRESS WITH MOVABLE HEAD /380V 60HZ 3PH
SUMORE / SP-50M
SP-50M electric-only H-frame hydraulic press provides 50-ton (500 kN) pressing capacity with working pressure up to 25 MPa and stroke up to 250 mm, suitable for heavy industrial forming and repair tasks. Operates on 380/220 V, 3-phase, 60 Hz power and features a movable head, 350×480 mm worktable, dimensions about 148×61×198 cm, and net/gross weight around 520/590 kg, ideal for blacksmith shops, heavy repair work, and high-force metal assembly or disassembly.
SP-50M electric-only H-frame hydraulic press provides 50-ton (500 kN) pressing capacity with working pressure up to 25 MPa and stroke up to 250 mm, suitable for heavy industrial forming and repair tasks. Operates on 380/220 V, 3-phase, 60 Hz power and features a movable head, 350×480 mm worktable, dimensions about 148×61×198 cm, and net/gross weight around 520/590 kg, ideal for blacksmith shops, heavy repair work, and high-force metal assembly or disassembly.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SP-50M |
| Pressure | 25 mpa |
| Travel | 250 mm |
| Voltage | 380V / 220V 3 Phases |
| Table size | 350*480 mm |
| Net/Gross weight | 520 kg / 590 kg |
| Dimension | 148*61*198 cm |
