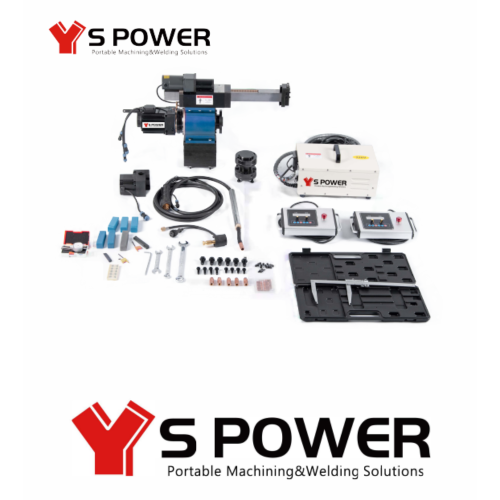

S POWER PORTABLE JOURNAL LATHE MACHINE P230
S POWER
The P230 Portable Lathe is a compact on‐site machining and welding machine that combines turning and spiral/sector welding for fast, accurate shaft repair. With a 60–230 mm range, servo motor, and portable design, it offers stable, precise, and efficient field maintenance for industrial applications.
The P230 Portable Lathe is a compact on‐site machining and welding machine that combines turning and spiral/sector welding for fast, accurate shaft repair. With a 60–230 mm range, servo motor, and portable design, it offers stable, precise, and efficient field maintenance for industrial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | P230 |
| Voltage | 220V ~ 240V |
| Rated Output Power of Main | 1.8KW Servo Motor |
| Motor Torque | 52 N.m |
| Servo Motor IP Rating | IP67 |
| RPM | 0–150 RPM |
| Lathe Feeding Motor | 150W Brush Motor |
| Weld Feeding Motor | 150W Stepper Motor |
| Axial Feeding Length | < 300 mm |
| Working Range | 60–230 mm |
| Shaft Turning Axial Feeding | < 300 mm |
| Length Shaft Turning Max Diameter | Φ230 mm |
| Shaft Turning Min Diameter | Φ60 mm |
| Shaft Welding Diameter Range | 60–230 mm |
| Shaft Welding Axial Feeding | < 300 mm |
| Length Weight | 44 KG |
