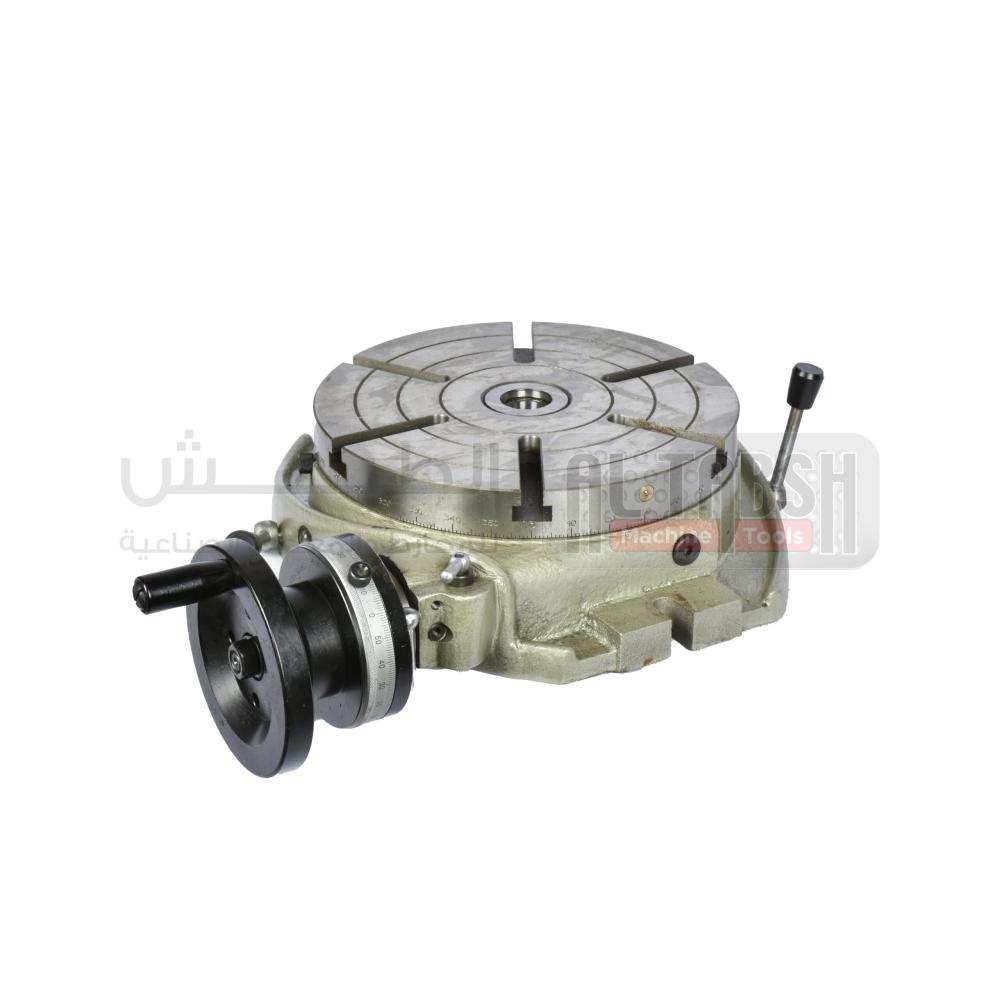

ROTARY TABLE HRW
/ HRW160-500
The HRW Rotary Table Series is designed for precise circular cutting, indexing, slotting, and machining operations. It can be used horizontally or vertically to hold workpieces, chucks, or vises. With hardened worm gear construction, standard T-slots, and accurate table locking, it provides stable performance for milling, machining, and workshop applications.
The HRW Rotary Table Series is designed for precise circular cutting, indexing, slotting, and machining operations. It can be used horizontally or vertically to hold workpieces, chucks, or vises. With hardened worm gear construction, standard T-slots, and accurate table locking, it provides stable performance for milling, machining, and workshop applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HRW160 HRW200 HRW250 HRW320 HRW400 HRW500 |
| Table Diameter | 160 mm 200 mm 250 mm 320 mm 400 mm 500 mm |
| Table Holes | 2 3 3 4 4 5 |
| Position Width | 12 mm 14 mm 14 mm 18 mm 18 mm 18 mm |
| T-Slot Width | 10 mm 12 mm 12 mm 14 mm 14 mm 18 mm |
| Worm Gear Ratio | 1:90 1:90 1:90 1:90 1:90 1:120 |
| Dividing | 10″ 10″ 10″ 10″ 10″ 10″ |
| Net Weight | 16.5 kg 22.5 kg 33.5 kg 65 kg 125 kg 215 kg |
| Gross Weight | 21.5 kg 31 kg 44.5 kg 76 kg 150 kg 238 kg |
