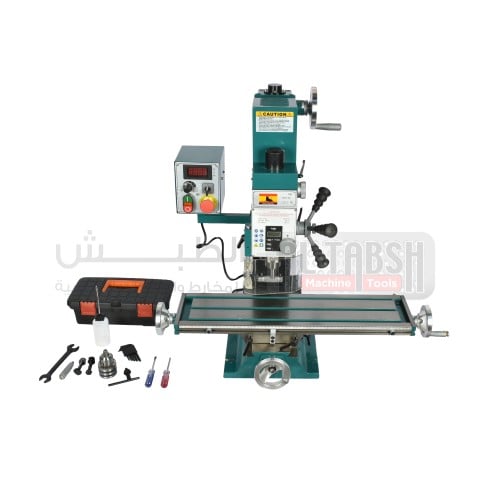

MILLING MACHINE SPVM 2217-III
SUMORI ESPANZA / SPVM2217-III
SPVM2217-III Hobby metal milling machine is the perfect choice for small and private workshops with very high-quality, The SPVM2217-III Milling Drilling machine gets the job done efficiently, and affordably, This customized Milling Drilling machine from SUMORI ESPANZA has a modern, tested design top installations, and safety regulations. Which can do most work easily and fast. 220V, Single Phase Compact milling and drilling machine for universal applications. Swivel head, MT3 spindle taper. The digital display shows spindle speed.
SPVM2217-III Hobby metal milling machine is the perfect choice for small and private workshops with very high-quality, The SPVM2217-III Milling Drilling machine gets the job done efficiently, and affordably, This customized Milling Drilling machine from SUMORI ESPANZA has a modern, tested design top installations, and safety regulations. Which can do most work easily and fast. 220V, Single Phase Compact milling and drilling machine for universal applications. Swivel head, MT3 spindle taper. The digital display shows spindle speed.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPVM2217-III |
| Drilling capacity | 25mm |
| End milling capacity | 20mm |
| Face milling capacity | 63mm |
| Table size | 700x180mm |
| T-slot size | 12mm |
| X-axis travel | 425mm |
| Y-axis travel | 220mm |
| Z-axis travel | 370mm |
| Spindle taper | MT3/R8 |
| Spindle stroke | 70mm |
| Spindle speed | 50-2250rpm |
| Head rotation | ±90° |
| Motor | 750W |
| Net weight / Gross weight | 125/150kg |
