KOWLOON GW50 REBAR BENDING MACHINE 380V 3-PHASE IRON BAR 50MM / REBAR 40MM
KOWLOON / GW50

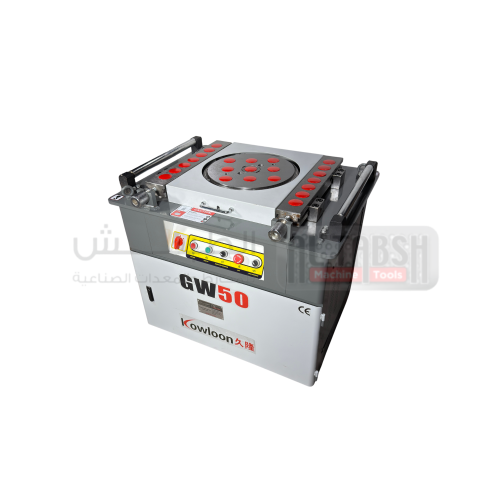

The Kowloon GW50 rebar bending machine is designed for bending ordinary carbon steel up to 50 mm and Class II rebar up to 40 mm. With a 4 kW brake motor running at 1440 r/min and a large 380 mm work plate, it delivers stable, controlled bending speeds of 5–10 r/min for construction and rebar fabrication sites.
The Kowloon GW50 rebar bending machine is designed for bending ordinary carbon steel up to 50 mm and Class II rebar up to 40 mm. With a 4 kW brake motor running at 1440 r/min and a large 380 mm work plate, it delivers stable, controlled bending speeds of 5–10 r/min for construction and rebar fabrication sites.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GW50 |
| Ordinary carbon steel | ≤ Φ 50 mm |
| Class II rebar | ≤ Φ 40 mm |
| Work plate diameter | Φ 380 mm |
| Plate thickness | 15 mm |
| Motor speed | 1440 r/min |
| Spindle speed | 5–10 r/min |
| Motor power | 4 kW brake motor |
| Dimensions (L × W × H) | 1040 × 820 × 850 mm |
| Weight | 450 kg |
