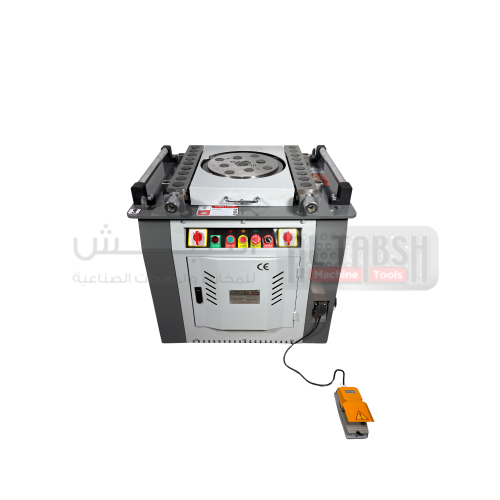

KOWLOON GW42A REBAR BENDING MACHINE 380V 3-PHASE IRON BAR 40MM / REBAR 32MM
KOWLOON / GW42A
The Kowloon GW42A rebar bending machine is designed for bending ordinary carbon steel up to 40 mm and Class II rebar up to 32 mm. With a 3 kW brake motor running at 1440 r/min and a 380 mm work plate, it provides controlled bending speeds of 5–10 r/min in a compact, easy‐to‐move body for on‐site construction work.
The Kowloon GW42A rebar bending machine is designed for bending ordinary carbon steel up to 40 mm and Class II rebar up to 32 mm. With a 3 kW brake motor running at 1440 r/min and a 380 mm work plate, it provides controlled bending speeds of 5–10 r/min in a compact, easy‐to‐move body for on‐site construction work.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GW42A |
| Ordinary carbon steel | ≤ Φ 40 mm |
| Class II rebar | ≤ Φ 32 mm |
| Work plate diameter | Φ 380 mm |
| Plate thickness | 10 mm |
| Motor speed | 1440 r/min |
| Spindle speed | 5–10 r/min |
| Motor power | 3 kW brake motor |
| Dimensions (L × W × H) | 900 × 800 × 1020 mm |
| Weight | 380 kg |
