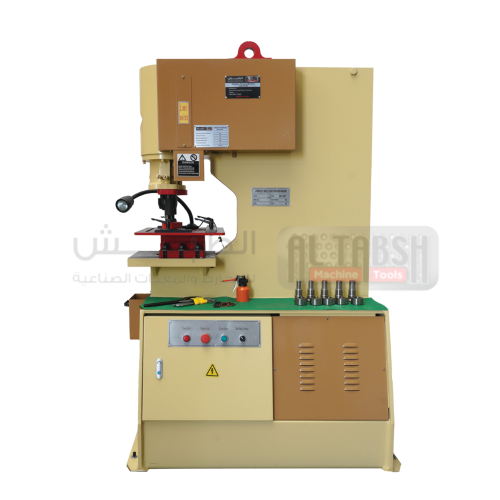

HYDRAULIC PUNCHING MACHINE 380V 3 PHASES 45T
AL-TABSH / TAB-HPU45
Adopt Hydraulic drive, easy-to-finish punching plate, channel, angle, I-beam, and other metal materials. With different stamping dies to achieve different functions, complete the short stroke of stamping parts. The machine adopts two operating cylinders, divided working into two regions, working alone, linked simultaneously, or work independently can be chosen freely. The machine runs smoothly, punching and stamping without vibration noise, it is the ideal stamping machinery.
Adopt Hydraulic drive, easy-to-finish punching plate, channel, angle, I-beam, and other metal materials. With different stamping dies to achieve different functions, complete the short stroke of stamping parts. The machine adopts two operating cylinders, divided working into two regions, working alone, linked simultaneously, or work independently can be chosen freely. The machine runs smoothly, punching and stamping without vibration noise, it is the ideal stamping machinery.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TAB-HPU45 |
| Overall dimensions | 124 × 85 × 175 cm |
| Net weight | 1200 kg |
| Max. punching pressure | 20 MPa |
| Max. punching capacity | 45 t |
| Material strength | ≤ 450 N/mm² |
| Max. stroke | 80 mm |
| No. stroke | 10–20 times/min |
| Throat depth | 300 mm |
| Punching depth | 12 mm |
| Max. punching diameter | 25 mm |
| Main motor power | 5.5 kW |
| Positioning accuracy | ≤ 0.1 mm |
| Shearing accuracy | ≤ 0.2 mm |
| Working noise | ≤ 85 dB |
