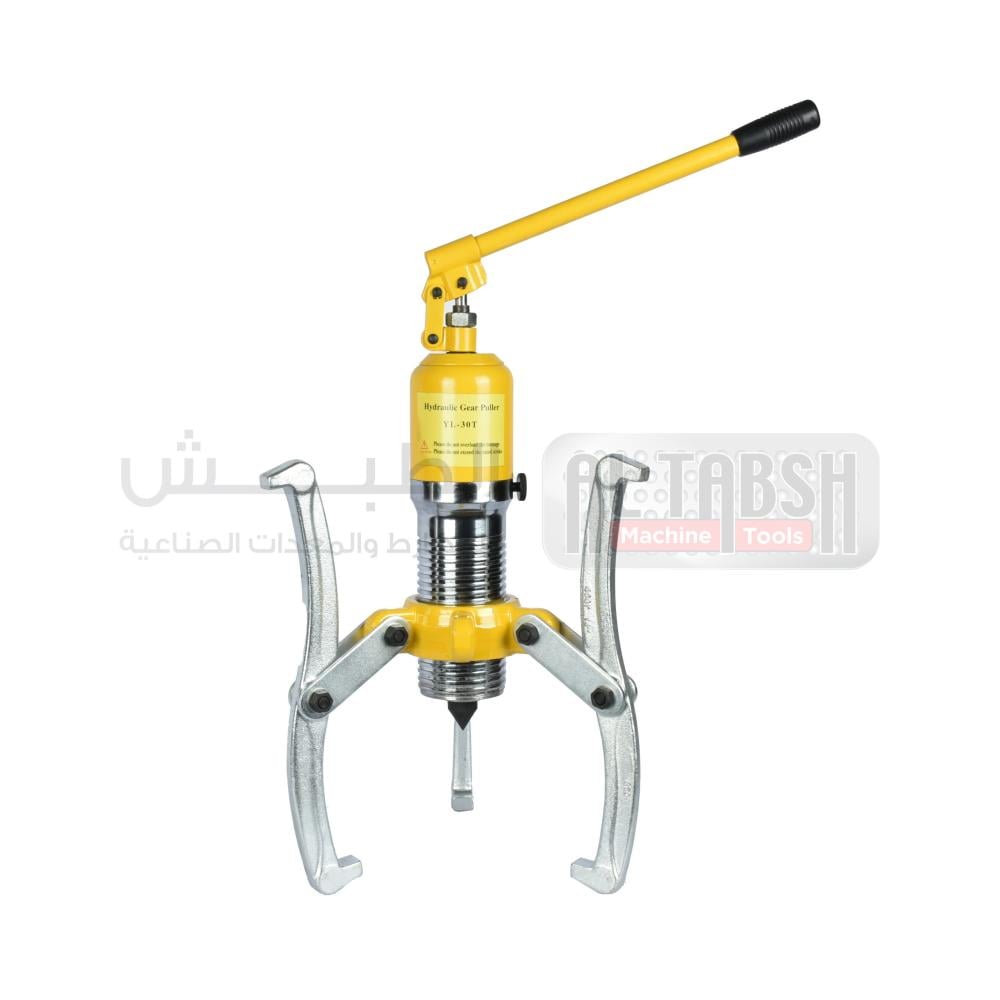

HYDRAULIC PULLER
/ 30Ton
The Hydraulic Pullers Series is designed for removing gears, bearings, bushings, pulleys, hubs, and flanges with controlled hydraulic pulling force. Available in multiple capacities from 5 Ton to 50 Ton, these pullers are suitable for automotive workshops, machine shops, heavy equipment maintenance, and industrial applications.
The Hydraulic Pullers Series is designed for removing gears, bearings, bushings, pulleys, hubs, and flanges with controlled hydraulic pulling force. Available in multiple capacities from 5 Ton to 50 Ton, these pullers are suitable for automotive workshops, machine shops, heavy equipment maintenance, and industrial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 5TON 10TON 15TON 20TON 30TON 50TON |
| Pulling Capacity | 5 Ton 10 Ton 15 Ton 20 Ton 30 Ton 50 Ton |
| Max. Spread | 200 mm 250 mm 300 mm 350 mm 400 mm 500 mm |
| Max. Reach | 140 mm 160 mm 180 mm 200 mm 250 mm 400 mm |
| Stroke | 50 mm 50 mm 50 mm 60 mm 60 mm 60 mm |
| Thread | 45 mm 60 mm 60 mm 73 mm 88 mm 110 mm |
| Weight | 6 kg 10 kg 11 kg 16 kg 24 kg 38 kg |
