CYLINDER HEAD PRESSURE TESTER TPT1600L TPT1600L 380V 3 PHASES
/ TPT1600L

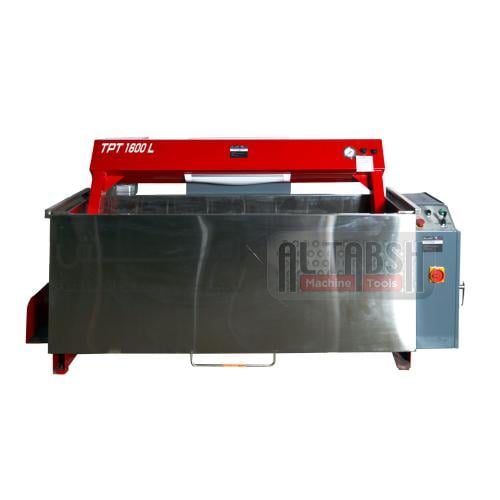

The TPT 1600L Cylinder Head Pressure Tester is a hot water leak testing bench designed for cylinder head and engine block pressure testing. It comes with a 500L stainless steel tank, hydraulic lifting system, adjustable heating thermostat, quick clamping, 360° electric roll- over, and safe 24V low-voltage controls for professional engine maintenance applications.
The TPT 1600L Cylinder Head Pressure Tester is a hot water leak testing bench designed for cylinder head and engine block pressure testing. It comes with a 500L stainless steel tank, hydraulic lifting system, adjustable heating thermostat, quick clamping, 360° electric roll- over, and safe 24V low-voltage controls for professional engine maintenance applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TPT 1600L |
| Max. Workpiece Length | 1300 mm |
| Max. Workpiece Width | 400 mm |
| Max. Workpiece Height | 300 mm |
| Tank Capacity | 500 L |
| Heating Elements | 2 × 4.5 kW |
| Hydraulic Hoist | 0.55 kW |
| Gear Motor | 0.25 kW |
| Rotational Speed | 4 r/min |
| Up / Down Travel | 600 mm / 10 sec |
| Thermostat Range | 14–70 °C |
| Power Supply | 3 Phase 380V AC 60Hz |
| Net Weight | 480 kg |
| Overall Size | 2100 × 1050 × 1700 mm |
