BRAKE SHOE RIVETING PRESS PNUMATIC
SUMORI ESPANZA / SP-8001

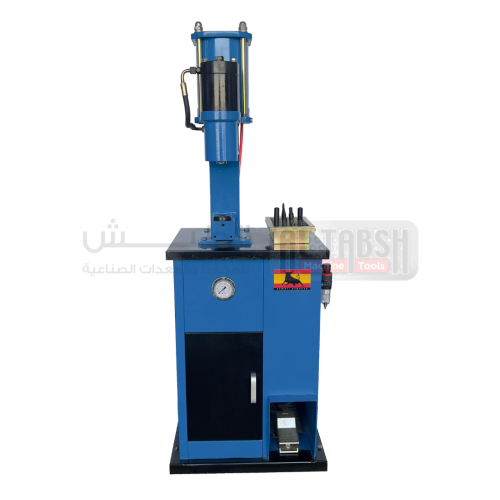

Pneumatic brake shoe riveting press SP-8001 from Sumori Espanza is designed for truck and trailer workshops to fasten brake linings onto steel shoes efficiently. The body is made from durable metal plate with high‐quality blue paint, delivering a maximum riveting force of 60 kN (about 6 tons) at adjustable air pressure between 0.5 and 0.8 MPa depending on lining type.
Pneumatic brake shoe riveting press SP-8001 from Sumori Espanza is designed for truck and trailer workshops to fasten brake linings onto steel shoes efficiently. The body is made from durable metal plate with high‐quality blue paint, delivering a maximum riveting force of 60 kN (about 6 tons) at adjustable air pressure between 0.5 and 0.8 MPa depending on lining type.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SP-8001 |
| Max. rivet force | 60 kN (6T) |
| Working air pressure | 0.5–0.8 MPa (adjustable) |
| Suitable rivet diameter | 10 mm |
| Stroke of the riveter | 40 mm |
| Height adjust distance of shoe iron bracket | 20 mm |
| Net weight (N.W) | 69 kg |
| Gross weight (G.W) | 101 kg |
| Packing size (L×W×H) | 580 × 540 × 1440 mm |
