BANDSAW BS4235 350MM 380V 60HZ 3PHASE SUMORE BRAND

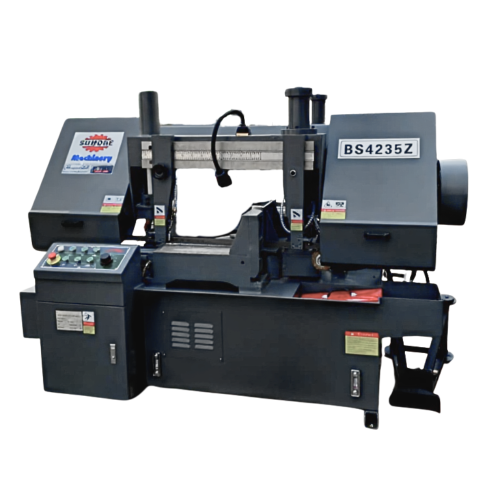

SUMORE / BS4235Z
The BSZ4235 metal angle cutting band saw is built for heavy-duty industrial cutting and fabrication workshops. It supports multi-angle cutting at 90° / 45° / 60° and features a hydraulic vise for strong, secure clamping. Powered by a robust motor with a worm gear transmission and a smooth roller sliding feed system, it delivers stable performance, accurate cuts, and efficient operation for large sections and tough materials in continuous production environments.
The BSZ4235 metal angle cutting band saw is built for heavy-duty industrial cutting and fabrication workshops. It supports multi-angle cutting at 90° / 45° / 60° and features a hydraulic vise for strong, secure clamping. Powered by a robust motor with a worm gear transmission and a smooth roller sliding feed system, it delivers stable performance, accurate cuts, and efficient operation for large sections and tough materials in continuous production environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BS4235Z |
| Sawing capacity 90° | 360 × 350 mm |
| Sawing capacity 45° | 350 × 240 mm |
| Sawing capacity 60° | 170 × 270 mm |
| Blade speed | 27 / 45 / 69 m/min |
| Blade size | 4515 × 34 × 1.1 mm |
| Main motor power | 4 kW |
| Hydraulic motor power | 0.55 kW |
| Cooling pump | 40 W |
| Power supply | 380 V, 60 Hz, 3 phase |
| Overall dimensions | 2200 × 1300 × 1600 mm |
| Packing dimensions | 2300 × 1350 × 1650 mm |
| Machine weight | 950 kg |
