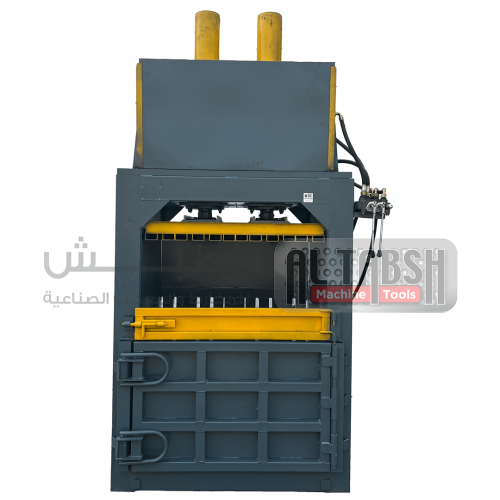

BALING PRESS MACHINE , CARTON PRESS 80 TON M80-12080 SIZE 1200 X 800 X 1000MM
/ 80TON
80‐ton cardboard baler press for recycling centers and large plants that require high‐density heavy bales of cardboard and paper, producing bales sized 1200×800×1000 mm with an approximate weight of 350–500 kg. The machine uses a double‐cylinder hydraulic system (outer diameter 180 mm, inner diameter 160 mm) with a long 1200 mm stroke to achieve high compaction pressure and tightly packed bales.
80‐ton cardboard baler press for recycling centers and large plants that require high‐density heavy bales of cardboard and paper, producing bales sized 1200×800×1000 mm with an approximate weight of 350–500 kg. The machine uses a double‐cylinder hydraulic system (outer diameter 180 mm, inner diameter 160 mm) with a long 1200 mm stroke to achieve high compaction pressure and tightly packed bales.
Technical Specifications
| Specification | Details |
|---|---|
| PRESSURE | 80 TON |
| Bale size (L×W×H) | 1200 × 800 × 1000 mm |
| Bale goods | Old / waste paper |
| Bale weight | 350–500 kg |
| Voltage | 380 V, 3‐phase |
| Motor power | 18.5 kW |
| Cylinder | Double |
| Cylinder outer Ø | 180 mm |
| Cylinder inner Ø | 160 mm |
| Cylinder stroke | 1200 mm |
| Hydraulic oil | No. 68 / 46 |
| Machine size | 3150 × 2000 × 1850 mm |
| Machine weight | 900 kg |
