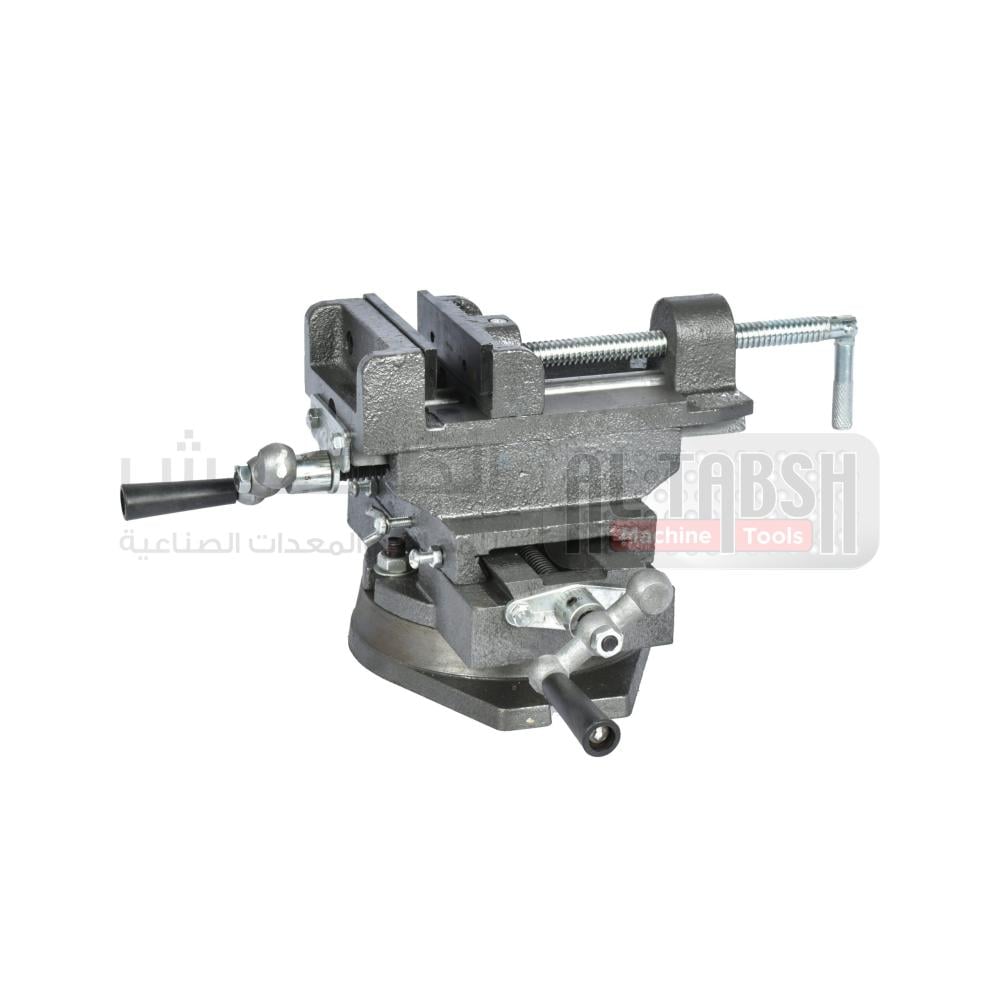

3 AXIS ROTARY CROSS VISE
The Cross Clamp Vise Series is designed for accurate workpiece clamping with X and Y direction movement. It features a 360° swivel base, making it suitable for drilling multiple holes and milling slots on the same surface. It can be used with bench drilling machines or as an attachment for milling and grinding machines.
The Cross Clamp Vise Series is designed for accurate workpiece clamping with X and Y direction movement. It features a 360° swivel base, making it suitable for drilling multiple holes and milling slots on the same surface. It can be used with bench drilling machines or as an attachment for milling and grinding machines.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 150 200 |
| Jaw Width | 160 mm 200 mm |
| Jaw Height | 53 mm 53 mm |
| Max. Opening | 152 mm 203 mm |
| Gross / Net Weight | 28 / 27 kg 37 / 35 kg |
